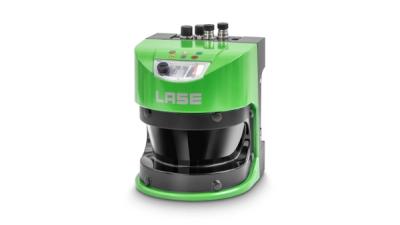

Lase 2000D-11x  Series

Two-dimensional laser scanners with a maximum range of 80m.
The mid-range laser scanners of the LASE 2000D-11x series measure contactless in two dimensions and were specially developed for industrial and outdoor applications.

The Scanner

The scanner captures the environment two-dimensionally (in polar coordinates) with a rotating, pulsed laser beam. When a laser beam is reflected from a target object, the object's position is determined by the measured distance and angle.
The scan takes place in an angular range of 190 °. The measurement distance of the LASE 2000D-11x series is a maximum of 80 m on light natural surfaces and a maximum of 40 m on dark natural surfaces. The new multi-echo technology makes laser measurements independent of the weather and ensures very reliable measurement results, even in poor weather conditions.

Benefits

Contactless 2D profile measurement
Excellent performance in harsh environments
Range: up to 40m on dark and up to 80m on natural target surfaces
Reliable multi-echo technology
High accuracy, high resolution and high measuring rate
Various interfaces: Ethernet TCP / IP; (USB)
Robust construction, protection class IP 67
