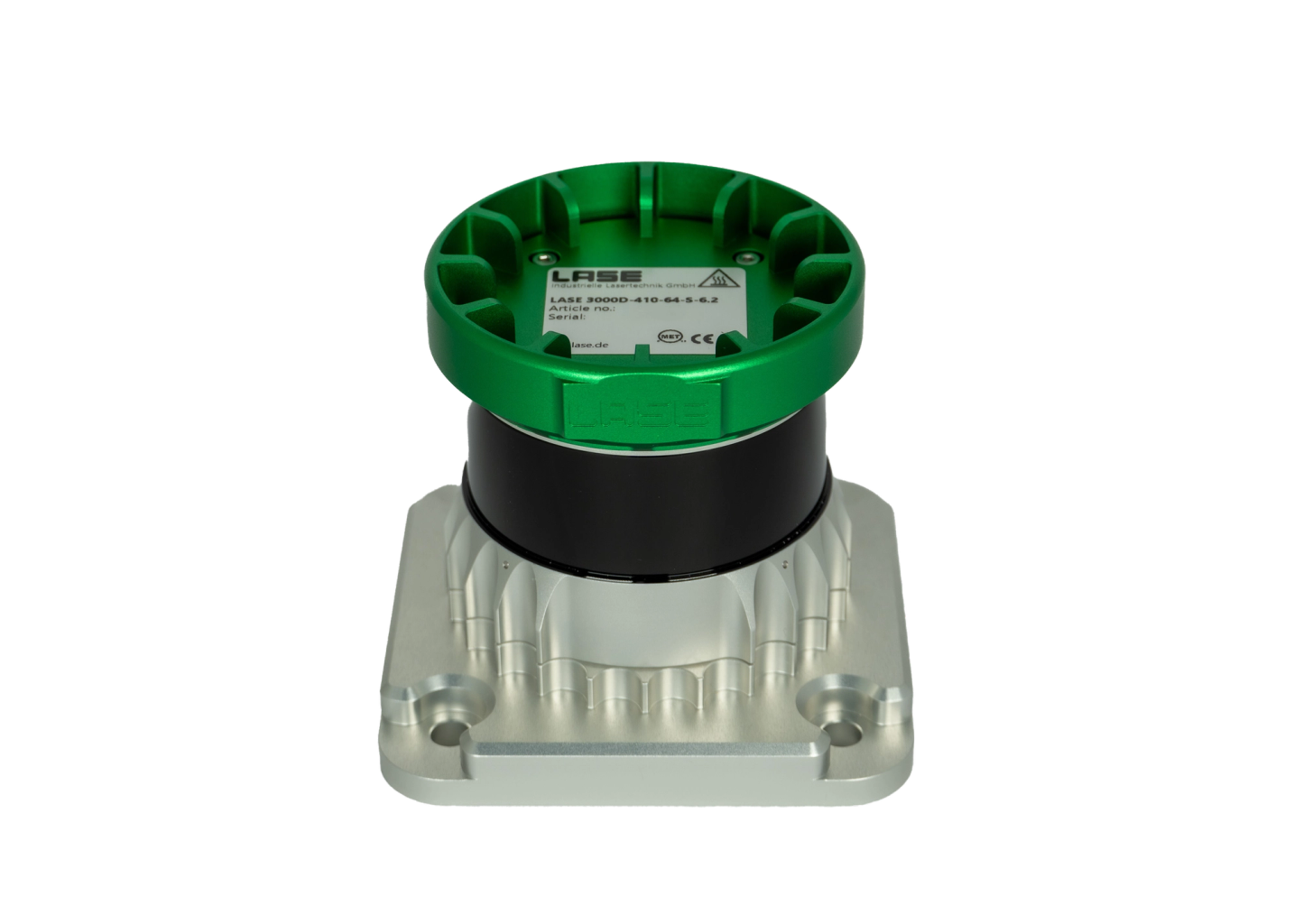

LASE 3000D-4XX SERIES
Multilayer Sensor
With its large measuring range, unrestricted scan angle and high angular resolution the LASE 3000D-4XX Series is suitable for a huge variety of industries and applications.
The Scanner
The LASE3000D-400 off ers 360° x 90° field of view, making it perfect for yard cranes, autonomous operations, and safety applications. Its high resolution, long-range capabilities, and costeff ectiveness make it a reliable choice for diverse use cases.
LASE offers multilayer sensors in three different resolution options: 32, 64, and 128 vertical scan planes. Higher resolution with more amounts of scan planes enables better perception and detection performance at longer ranges. In addition to resolution, LASE offers scan plane configuration options for the 32 and 64 scan plane sensors; standard (all scan planes distributed over the full vertical opening angle), below horizon (all scan planes on the bottom half of the field of view), and above horizon (all scan planes on the top half
of the field of view).
Contactless long range 3D profile measurement
Range of up to 400 m on dark natural surfaces
Range of up to 200 m on natural surfaces
Scan area up to 90° x 360°
Interfaces: Ethernet TCP/IP, RS-232, CAN-Bus
Rugged constructon type to IP 65
Benefits
- Real time 3D image
- Unique stable object detection
- Self-test incorporated
- User friendly soft ware
- Simple installation
- Outdoor applicable due to integrated heating
