The LaseTVM-3D-LOG (LOG/ MOTION) is a highly accurate 3D laser measurement system for automatic and dynamic measurement of log volumes on trucks during one pass. The measurement system has high versatility.
The Measuring System
To measure the log volume on trucks reliable and highly accurate, four 2D laser scanners are used in combination with the LaseTVM-3D-LOG application software.

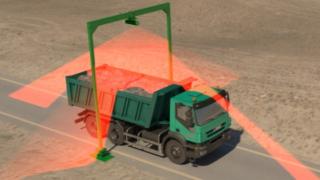

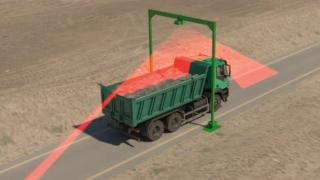

LaseTVM-3D-LOG enables dynamic measurement of log volume without stopping the vehicle. Two laser scanners are mounted on a frame in a central position above the truck lane. Two additional laser scanners are mounted on the same frame to the left and right of the lane. Three laser scanners measure the cross-section of the load from above and from the left and right.

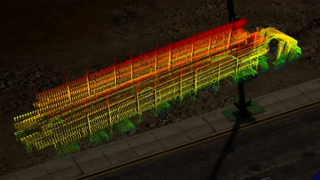

Another laser scanner takes over the tracking of the truck. When a truck loaded with logs passes through the measuring area, a 3D image of the load is generated, and the volume of the loaded logs is calculated.
The system is also available in combination with an RFID scanner (for trucks with RFID tags), an HD camera for documentation and an OCR camera for license plate recognition. On a holistic level, all data is captured with just one application.
