LaseYC-MF-1
MULTI-FUNCTIONAL MEASUREMENT SYSTEM FOR YARD CRANE
LaseYC-MF-1 is a multi-functional laser measurement system based on multilayer laser scanner technology.
The Application

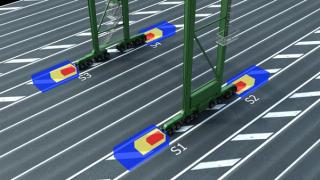

The system is based on two or more multilayer laser scanners installed at the gantry to both sides and heading to the truck lane. The sensors are connected to a LASE Control Unit (LCU) with the application software. Observing the area in front of the gantry and the truck lane makes it possible to cover the following functions.
LaseTLP - Truck Lifting Prevention
During the lifting of the container, the measurement system tracks the container and the structure of the chassis. When the chassis and container go upwards, the measurement system detects a lifting of the chassis and sends an alarm signal to the crane PLC.
LaseCP - Cabine Position
During the container drop process to the chassis, the measurement system checks whether the truck’s cabin is outside the operation area of the spreader resp. the container.
LaseTMD - Truck Movement Detection
During the loading and unloading process, the measurement system detects when the truck is moving.
LaseTPS - Truck Positioning System
The measurement system measures the position of the chassis and the container on the chassis. It gives feedback to the truck driver via a digital display about his relative position in the crane’s centre.
THE BENEFITS
- High functionality with a reduced amount of sensors
- Reasonable solution
- Safety
- Easy installation
- Support Manual, Remote and Automatic Operation
