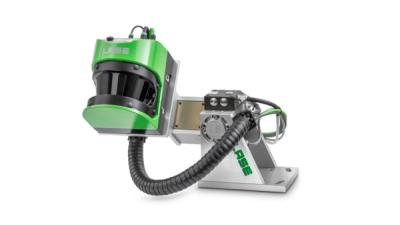

Lase 3000D-C1-11x Series

Three-dimensional laser scanner with a maximum range of 80m
The laser scanners out of the LASE 3000D-C1-11x Series are threedimensional measurement devices which are especially built for measurements in harsh industrial environments and for numerous outdoor purposes.

The Scanner

The high performance 3D laser scanners from the product range of the LASE 3000D Series are based on the components of a 2D laser scanner out of the LASE 2000D-11x-Series and a swiveling platform which is powered by a servo-drive.
A high resolution encoder on the servo-drive measures the angle of rotation of the platform and by connection of the 2D laser data with the encoder data, high precision 3D profile measurements are produced. Optionally LASE can provide sophisticated software either to control and collect data from the laser scanner or for complete measurement solutions.


Contactless long range 3D profile measurement
Range of up to 40 m on dark natural surfaces, range of up to 80 m on natural surfaces
Scan area 170° x 80° (scan/swivel)
High accuracy, high resolution and fast measuring rate
Interfaces: Ethernet TCP/IP, CAN, USB (service only)
User friendly software
Unique stable object detection
Simple installation
