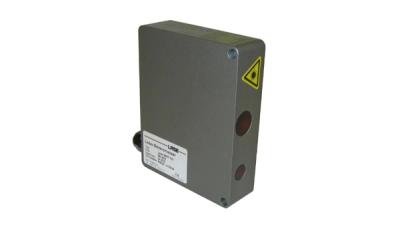

LASE 1000T Grey Line Series
Laser Sensors for distance, thickness & width measurement
The distance sensors of the LASE 1000T Grey-Line series are optical measuring devices using the triangulation principle. This technology guarantees the highest accuracies down to the μm range.
The Sensor
The sensor consists of a laser diode, and a high-resolution CCD line camera arranged at an angle. The laser projects a visible point onto a measurement object. The camera line detects the laser point. The distance to the object is calculated from the position of this point on the CCD line.
With this method, an accuracy of up to 0.01 mm can be achieved, depending on the measuring range. The maximum range for measurements on natural surfaces is 4000 mm. The sensors have an automatic control of the light intensity and thus offer unsurpassed measuring properties.
The LASE 1000T Green-Line series has a compact design, as all-optical elements are integrated with the electronic components in a heavy-duty aluminium housing. The sensors do not contain any moving parts and are particularly suitable for measuring tasks in harsh industrial environments.
Benfits
- Contactless distance measurement in the range from 400 mm to 4000 mm
- Measuring field 500 to 2000 mm
- High accuracy in the μm range
- High measuring rate (up to 2 kHz)
- Interfaces: RS 232 or RS 422, analogue 4-20 mA
- Usable for target temperatures up to 450°C (as VVHT version up to 2200°C)
- Robust construction according to IP 65
- Control of the light intensity in the closed-loop process
