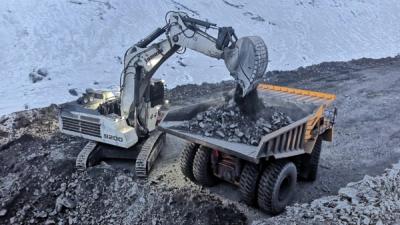

The LaseTVM-3D-S (STATIC) is a highly accurate 3D laser measurement system for automatic measurement of truckload volumes while stationary. The measurement system has high versatility and is used for volume measurement of various materials such as stones, sand, ore or wood products.

The Measuring System

To measure the load volume on trucks reliable and highly accurate, a 3D laser scanner is used in combination with the LaseTVM-3D-S application software.
The LaseTVM-3D-S enables a static measurement of the vehicle's load volume, for example, over a surface on which trucks must stop or as an addition overweighing bridges. The laser scanner is mounted on a frame or boom in a central position above the measurement area.

The 3D laser scanner measures the truck load volume as it enters the measurement area and comes to a stop. The truck is measured once empty and once full, which measurement takes place first depending on the process. The difference between the full and empty truck measurements gives the exact load volume.

The system is also available in combination with an RFID scanner (for trucks with RFID tags), an HD camera for documentation and an OCR camera for license plate recognition. On a holistic level, all data is captured with just one application.

Common System Features

Automatic load volume measurement
WebPortal for remote access
Instant volume measurement without conversion factors
Easy and fast installation
Addition or replacement of weighing bridges
Exclusion of weight and volume manipulation
Traditional weight measurements can be affected by moisture (up to 20% of volume)
Highly accurate laser measurement system (*accuracy typically approx. 2%)
